DZC-1400 Ice Resurfacer Specifications

1. General Dimensions

- Length (Static): 2900 mm
- Width (Vehicle Body): 1400 mm
- Width (Blade Holder): 1400 mm
- Height (Overall): 1350 mm

2. Drive System

- Wheelbase: 1050 mm
- Track Width: 860 mm
- Tires:
  - 4-hole aluminum alloy rims (diagonal hole spacing: 100 mm)
  - Tire size: 165/70R13
  - 9-layer steel-belted construction
  - Embedded alloy snow studs
  - Load capacity: 300 kg per wheel
- Axles:
  - Front axle: Hydraulic push-rod linked steering system
  - Rear axle: Integrated motor-driven differential
  - Rear wheels: Hydraulic drum brakes
  - No shock absorber system

3. Motion & Control

- Control Type: Electronic accelerator pedal
- Speed:
  - Low-speed mode
  - Maximum speed: 20 km/h
- Transmission: Electronic forward/reverse gear control

4. Weight

- Fully Loaded Weight: 350 kg

5. Water & Ice Management

- Ice Collection Bin: None
- Water Tank Capacity: 350 liters

6. Power System

- Battery:
  - 48V maintenance-free battery
  - 4 × 8V 52Ah (15 kg each)
- Motor:
  - High-power DC brushless motor
  - Rated Power: 48V / 3.0 kW

7. Appearance & Build

- Headlights: Wide-voltage LED high/low beam headlights
- Body Construction:
  - Heavy-duty steel plates
  - Electrostatic powder coating
  - Partial stainless steel components

8. Key Features

1. This model supports ice resurfacing and snow shavings removal functions.
2. Fully electric drive system powered by four 8V 52Ah water batteries.

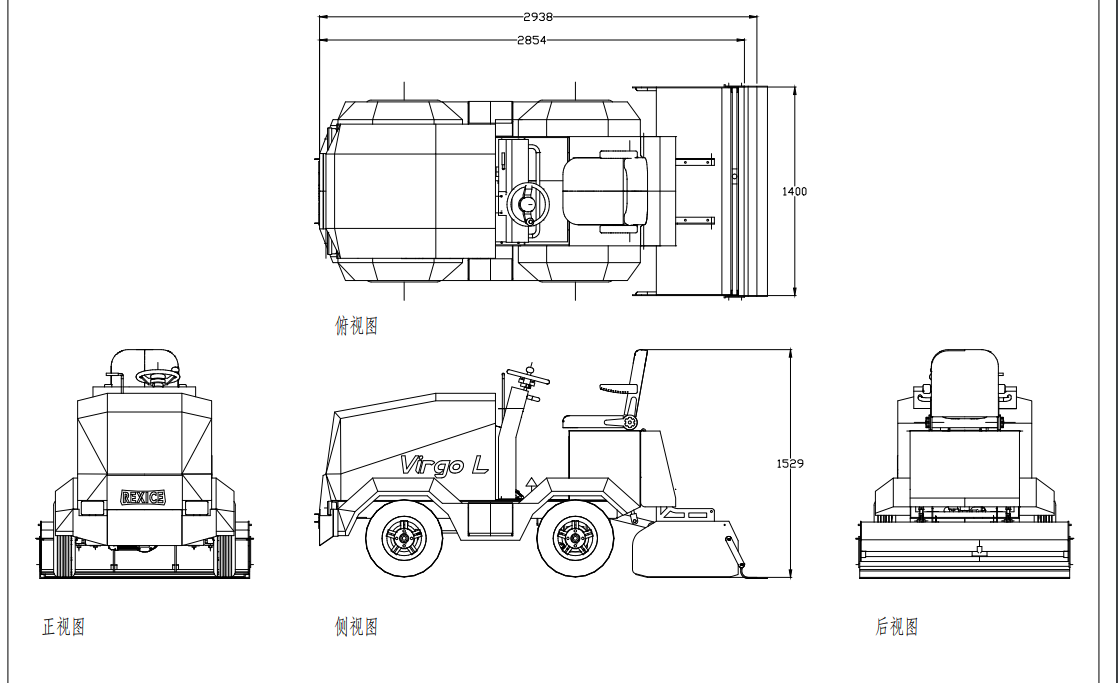

3. Dimensions: 2938 mm (L) × 1400 mm (W) × 1529 mm (H)
